35,000~60,000kg

Load Capcity

/

Lift Height

Li-Ion

Drive Types

OVERVIEW

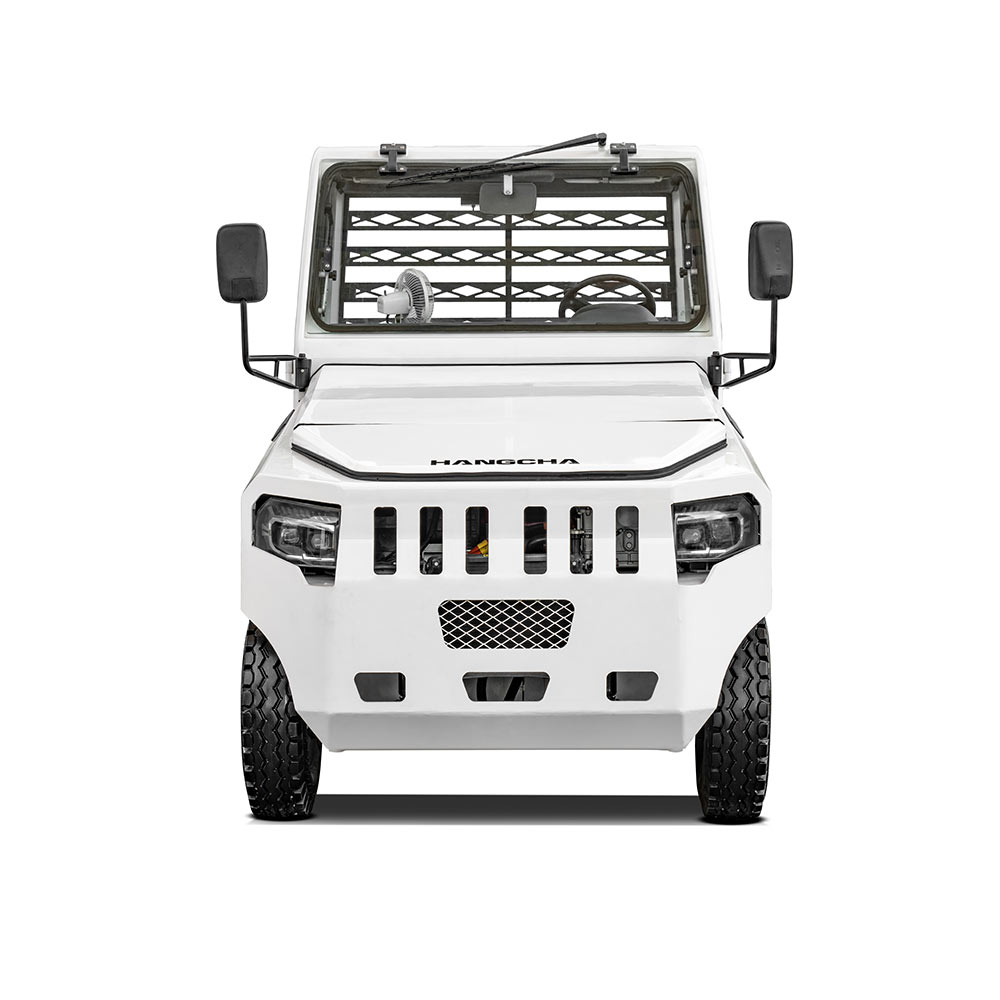

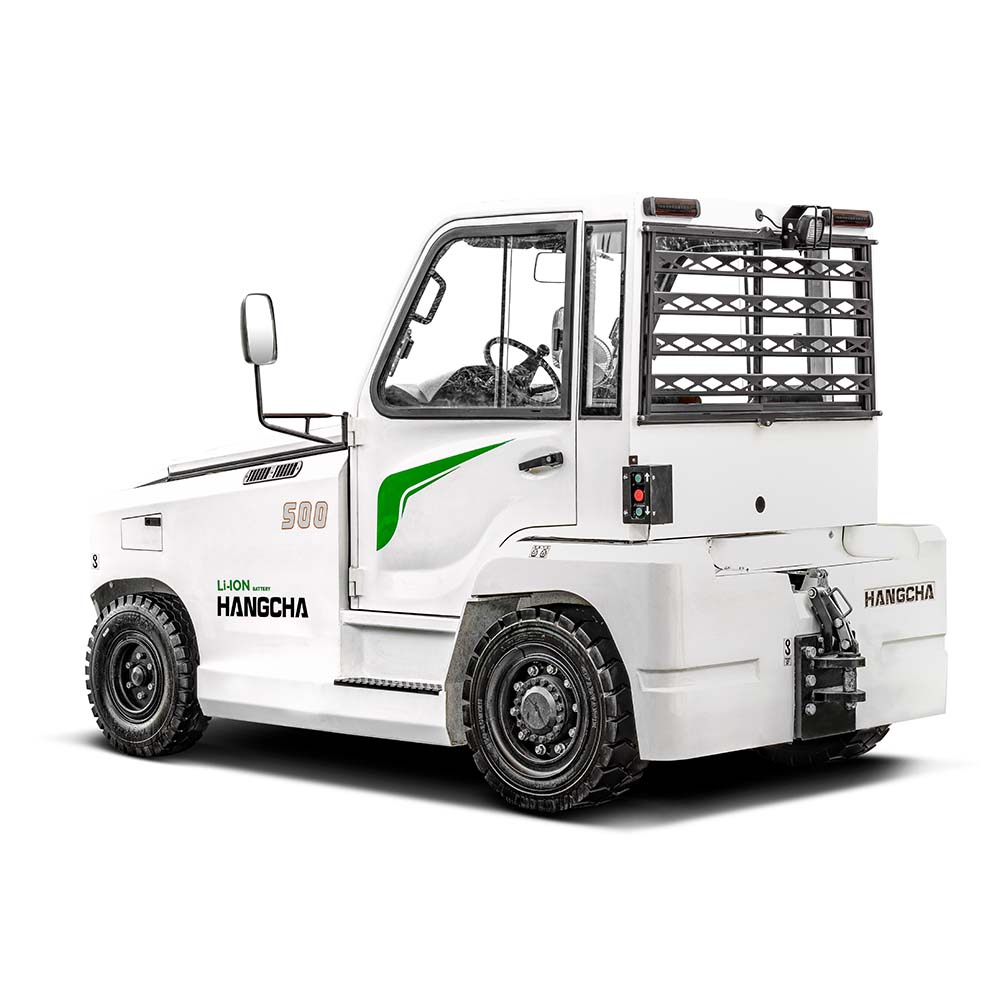

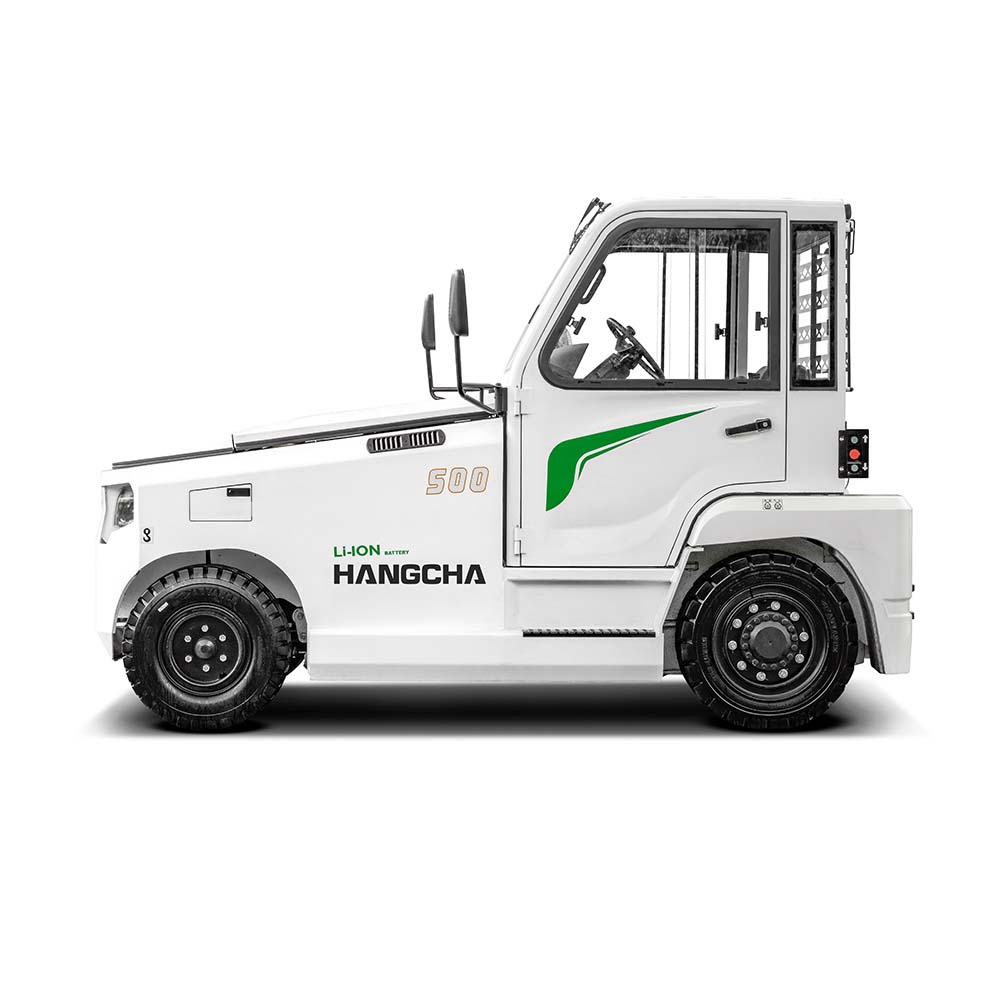

With a streamlined integral steel structure, a vivid stylish profile formed by a combination of large arcs and streamlined curved surfaces and a centered driving position, the vehicle is suitable for pushing operations.

High-efficiency power system and high-performance lithium iron phosphate battery: the lithium battery is installed horizontally. With the standard water cooling system (For 35-50t), the battery can last for a long time.

Detail01

Emergency shut-off switch

Detail02

FEATURES
  • Comfort

    The chassis elastic suspension technology and the long wheelbase design enable a great ride comfort

  • Electric Vacuum Assisted Braking

    The double-chamber and double-pipeline all-wheel braking systems with front and rear proportional partial pressure control performs safe, stable and reliable braking. The large-capacity vacuum cylinder designed can reliably assist braking to enable higher safety when the vehicle is not powered.

  • Dual-Source Steering Oil Pump Motor

    The dual-source steering oil pump motor adopted ensures good high-low voltage performance, and safe and reliable steering.

  • Advancement
    The LED-screen instruments have the functions of battery display, timer and fault self-diagnosis, without a handheld unit, maintenance and changing of the vehicle performance can be completed through the instruments. Faults are indicated in the form of a combination of codes and text, which are clearer and easier to read. There are operating switches at the rear of the vehicle: front and rear jog switches and an emergency shut-off switch.

  • Maintainability

    The electric components such as the electric controller, contactor, instruments and accelerators are all renowned brands and have high reliability. An permanent magnet synchronous power system is used for driving and steering, and the motor is maintenance-free.

  • Environmental Protection

    Silence, no pollution, energy saving and other advantages meet the environmental protection requirements.

GALLERY
