9,000kg

Load Capcity

0~12015mm

Lift Height

Li-Ion

Drive Types

OVERVIEW

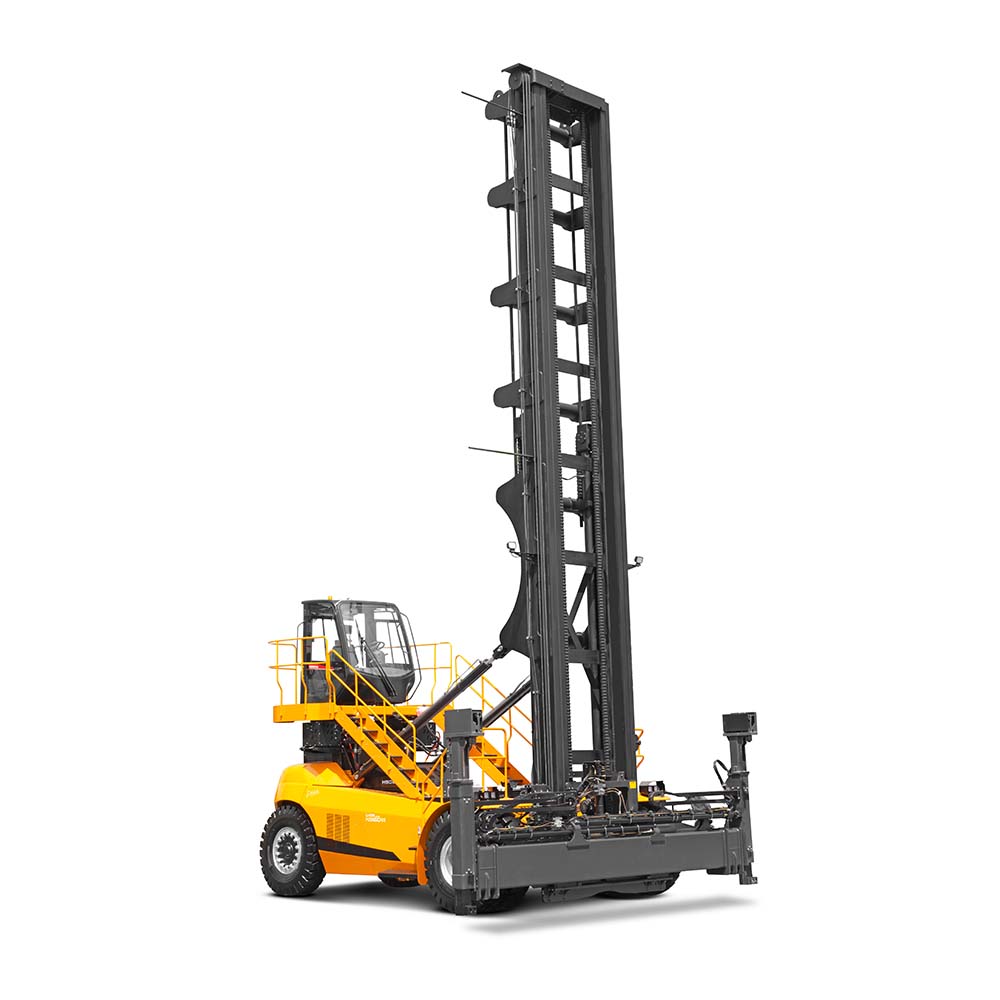

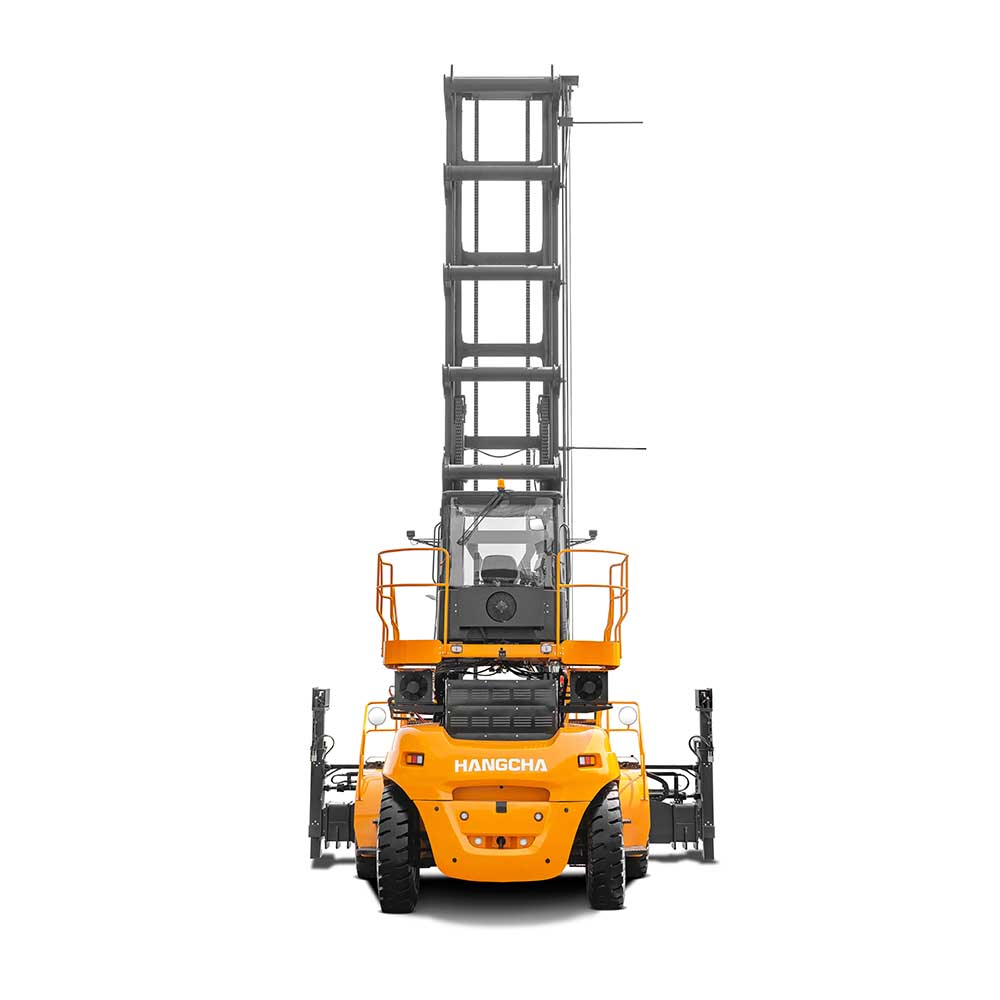

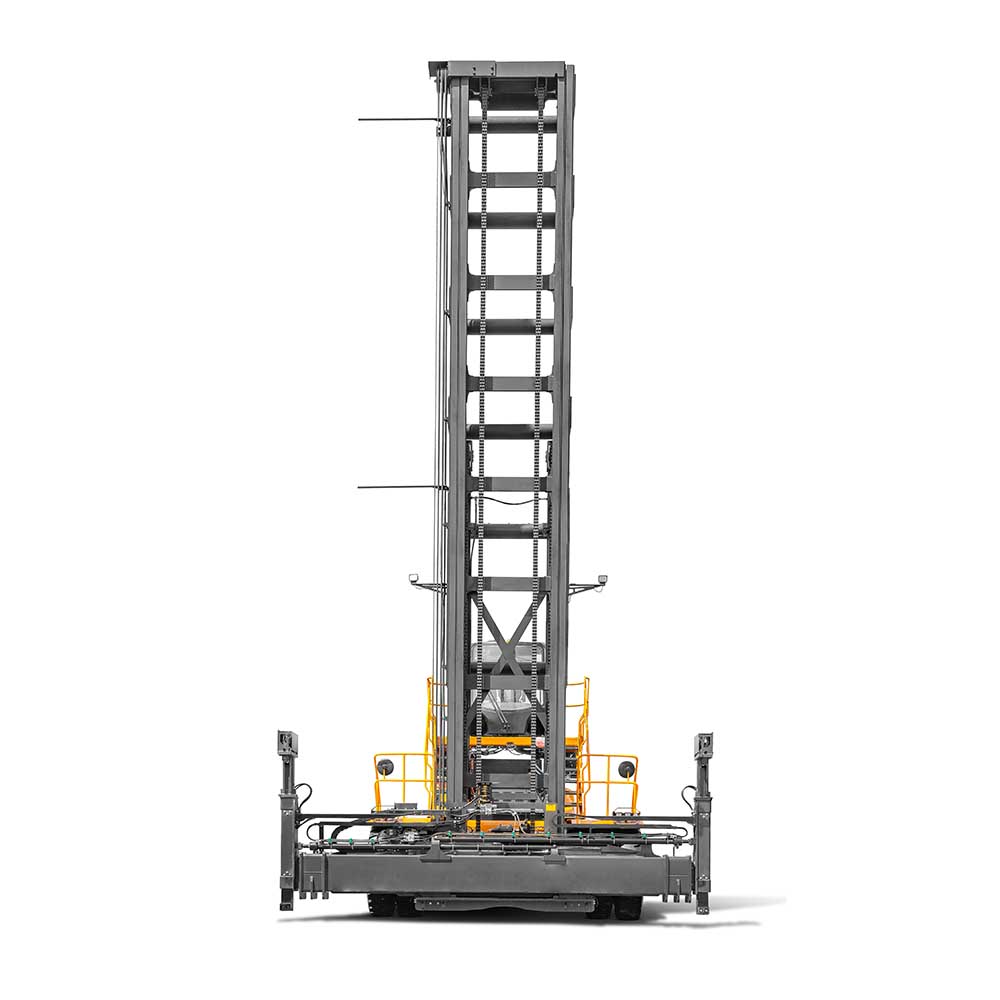

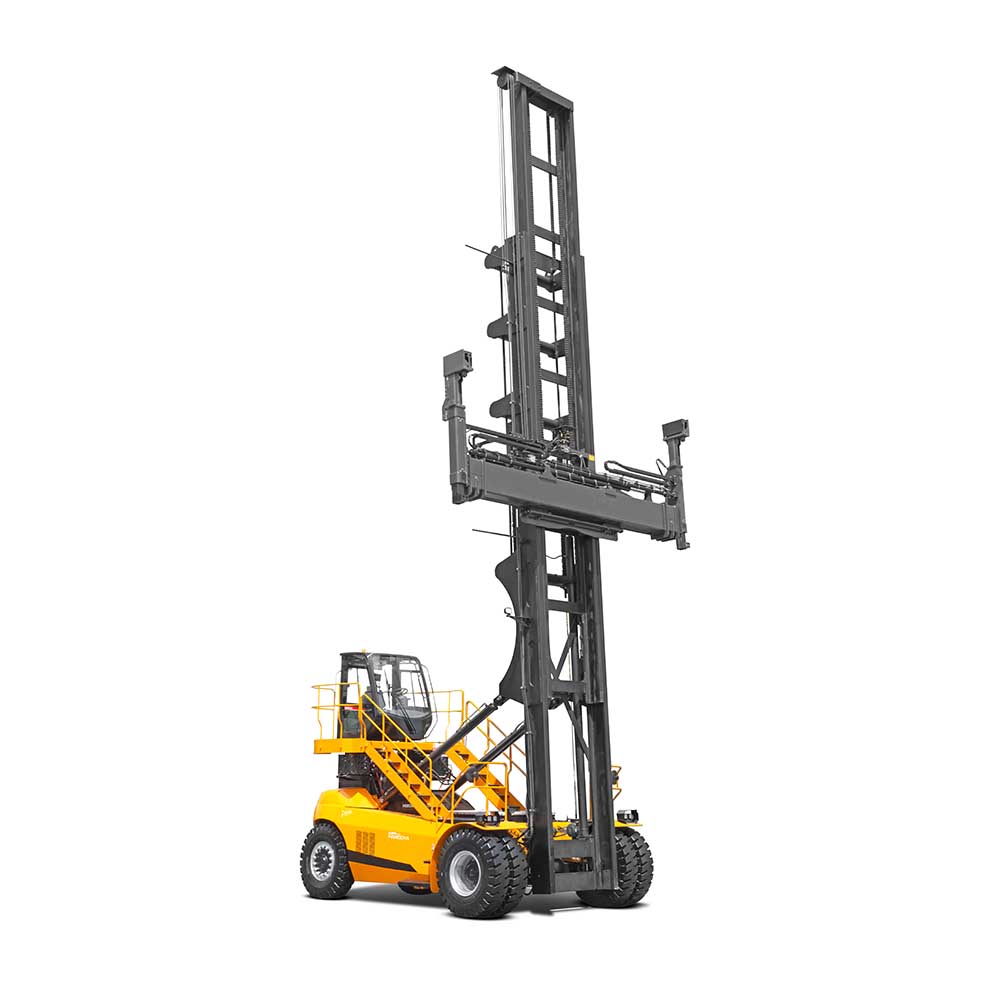

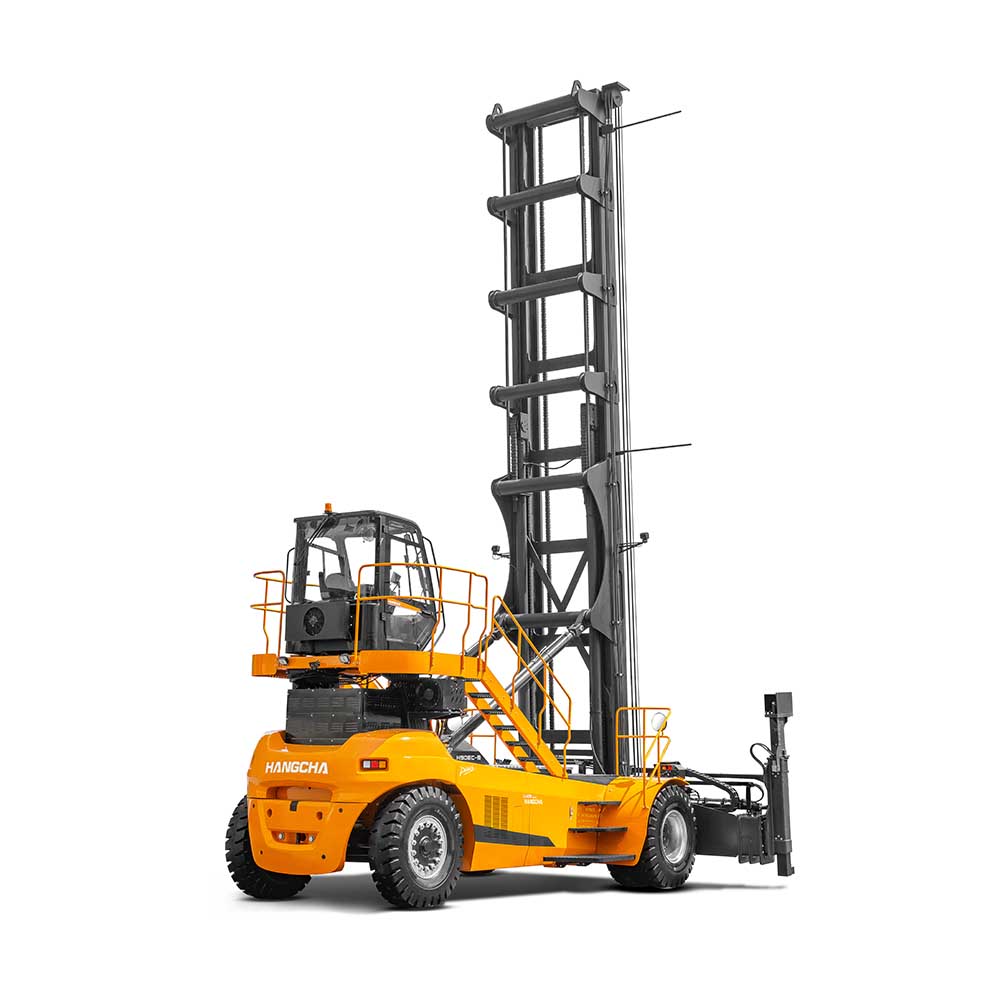

Independently developed by Hangcha on the basis of decades of deep understanding of electric products and internal combustion products, XH series high-voltage counterweight lithium battery empty container handlers are a new series of high-voltage lithium battery empty container handlers that first use a new energy vehicle voltage platform and represent a breakthrough over the traditional design concept. With improved efficiency, power, reliability, etc., XH series forklift models have performance and operating condition completely superseding that of the internal combustion forklifts.

Both the battery and junction box have MSD maintenance switches to enable one-click power-down and safer maintenance.

The LED lighting system ensures the brightness of the lighting within the operating range.

FEATURES
  • Advancement

    A high-torque permanent magnet synchronous motor provides strong power for the vehicle with performance indicators benchmarked against that of internal combustion forklifts. A 579V high-voltage platform with low system loss and a standard chilled water tank for heavy-duty truck to achieve good heat dissipation.

  • Reliable

    The novel spreader has a higher reliability, a longer service life, a lower failure rate and a lower maintenance cost.

  • Ultra long battery life

    A large-capacity lithium battery for the standard configuration can meet the long battery life need. Both the drive and operating systems are efficient and energy-saving vehicle-grade permanent magnet synchronization systems. High-voltage platform, less vehicle current and minimal system heat loss.

  • Safety

    The cover of the vehicle is designed to be sealed to the water resistance level of IPX4. The electrical system has high-voltage interlocking, insulation monitoring and potential balancing functions to offer vehicle-grade safety. All the motor and electronic controls reach the dust and water resistance level of IP67, a high protection level adequate to withstand harsh operating environments. The high-voltage lithium battery is equipped with an automatic fire extinguisher for the standard configuration. The vehicle is equipped with a pipe network automatic fire extinguisher for the standard configuration. A turning deceleration function effectively reduces risk of tipping over.

  • Fully-suspended all-round vision cab

    The large-stroke bodily-movable fully-suspended cab can be repaired and maintained easily, can easily switch to the manual movement mode, and easily move. With the vehicle frame damper connected and the tight sound and heat insulation design, most vibration and noise are shielded. The largely-curved front and rear windows, all-glass left and right doors and large glass ceiling enable a broad view.

  • Maintainability

    The overturnable cab and electric tipping cylinder make tipping easier and more labor-saving. The wide-opened hood and removable cover better facilitate repair and maintenance of electrical components.
