1,300~2,000kg

Load Capcity

0~6500mm

Lift Height

Li-Ion

Drive Types

OVERVIEW

Covering models with a tonnage of 1.3t, 1.5t, 1.6t, 1.8t and 2.0t respectively, the new XC series three-point new energy electric forklifts are HANGCHA’s dedicated-purpose battery forklifts subsequent to the XC series four-point dedicated-purpose battery forklifts. Equipped with the dedicated lithium battery cells and modules for the XC series forklifts, which are developed jointly by HANGCHA and CATL, the truck has the features of high lifting speed, high driving speed, excellent ergonomic design, easy operation and high safety.

The wide-view mast with optimized design is unlikely to obstruct the operator's line of sight. The enlarged opening size of the fork carriage enables a wider view. The high fulcrum of the tilt cylinder enables better force bearing and more stable operation of the mast

The packs can be easily removed by a manual or electric cart, and can be repaired and maintained conveniently

The dashboard in the driver's cab is placed overhead and can be seen when the driver lift her/his head, and the function buttons can be pressed easily

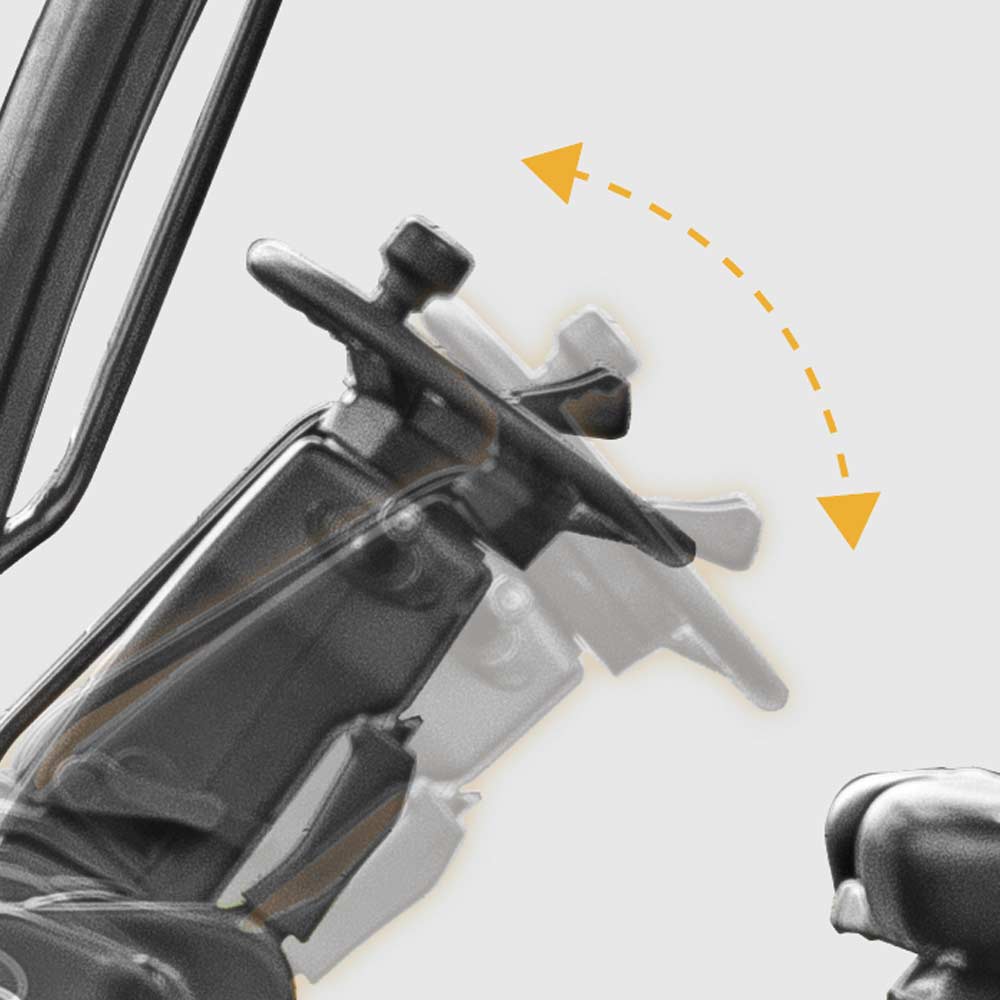

The ergonomically designed tilt-adjustable smalldiameter steering wheel makes the driver feel good

The seat can be adjusted back and forth by 210mm. The operator can choose the best driving position

FEATURES
  • Excellent ergonomic design

    The truck has a large operation space more than 50% larger than that of the traditional three-point electric truck. The enlarged brake pedal and appropriate regenerative braking function can effectively reduce the driver’s fatigue.

  • Easy operations and maintenance

    With the fully sealed hood and side plates, all major components including the electrically controlled components, motor, electrical components, etc. are sealed from dust and water. Vulnerable parts and key parts are arranged reasonably to facilitate maintenance and repair.

  • Advancement

    The high-frequency MOSFET integrated controller ensures smooth and accurate driving and lifting control, and has excellent speed regulation performance, good performance of electronic control matching the motor, functions of regenerative braking, reverse braking and anti-sliding on ramps, etc., and high safety and reliability.

  • Main Accessories

    The main electrical components such as the motor controller, contactor, power plug, emergency cut-off switch, dashboard, accelerator, are all products of well-known foreign brands.

  • Comfort

    Owing to the low center of gravity and good stability, the driver feels comfortable during turning. The intelligent sensing enables buered descending. When the fork is 100 - 60mm away from the ground, the descending will automatically slow down, so that the goods and pallet will not hit the ground and the goods and ground can be protected effectively.
