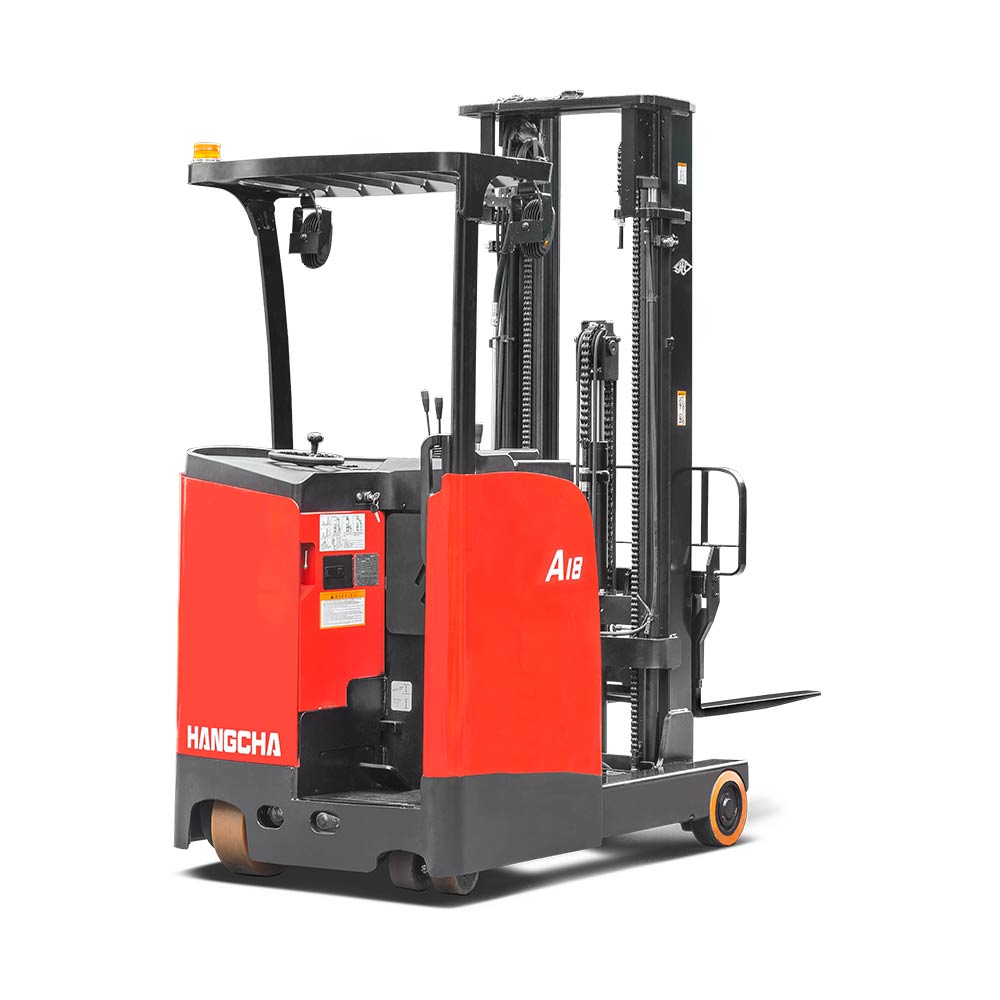

A Series Stand-on Reach Truck

Worldwide

Product Finder

Lithium E-Trucks

E-Trucks

IC - Trucks

Pallet Trucks

Pallet Stackers

Reach Trucks

Order Pickers

Tow Tractors

Very Narrow Aisle Trucks

Rough Terrain Trucks

Aerial Platforms

Port Machinery

Explosion Proof Forklift

AGVs

1,500~1,800kg

Load Capcity

0~6000mm

Lift Height

Lead Acid Battery

Drive Types

OVERVIEW

The A series stand-on reach truck is a new-generation product developed by our company in response to different market needs. The truck has comfortable ergonomics, wide operating vision and a stable control system.

Safe pedal: when the pedal is released, traveling is stopped, and only hydraulic operation is enabled

Charging plug inside operator's compartment, this eliminates the need to disconnect the plug from battery, enhancing ease of operation (Std.)

New designed mast and the large open steel roof provide super visibility and safety

Operator's compartment

Forks can tilt forward/backward for easy loading

FEATURES

Safety

An optimal four-link suspension mechanism forces the drive wheel and the auxiliary wheels, thereby reducing slipping of the drive wheel. A disc mechanical brake and regenerative braking system make the truck safer and more reliable.
Reliability

The Curtis controller and CAN-bus communication provide safe and reliable. The Shimadzu multi-way valve and gear pump provide higher efficiency and faster lifting speed.

Comfortable

Optimal ergonomic design. the steering wheel, operating lever and accelerator are positioned at the best distance to the driver, making the operation lighter more comfortable.
Maintenance

Traction and lifting system are all adopt maintenance- free AC motor. The door can be fully opened for easy maintenance.

GALLERY

Video

The ergonomically-designed comfortable vehicle has wide operating vision and a stable control system, and is further optimized and improved in terms of configuration, parameter, performance, safety, cost, etc.
